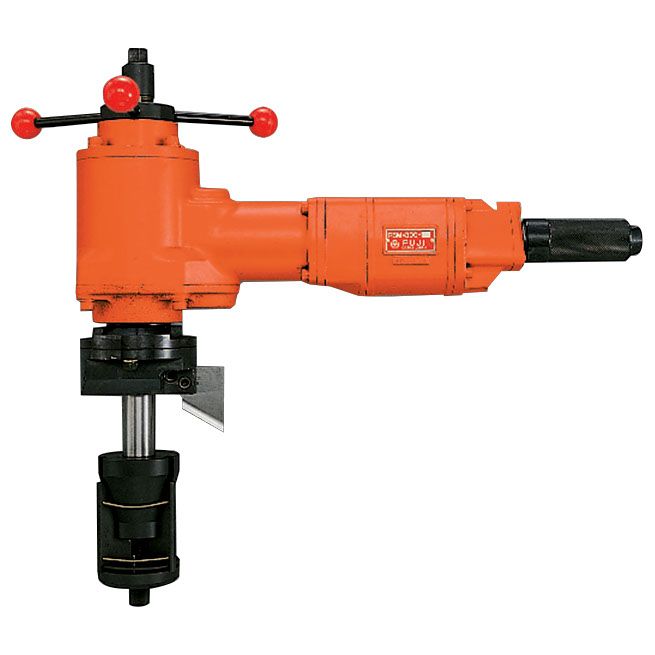

FBM-300 - Pipe beveling machine

FBM-300 series Pipe Beveling Machine is designed with poweful motor for effective operation. Zero torque reaction provides operator comfort. The bevel capacity is 80 - 240 mm (pipe inner dia.) pipe. Roll throttle handle and self-return throttle provide to meet different regulations. This series provide PT and NPT inlet.

Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Imperial Metric

Air information

Air inlet thread size (in)

1/2

Air inlet thread type

Min hose diam (5 m hose length)

12.7 mm

Size & Weight

Length (L)

23.74 in

Weight

52.2 lb

Design & Functions

Feed Length

Pipe inside diam capacity (mm)

120 - 240

Power & Battery

Max power

1.34 hp

Torque

Stall torque

318 ft.lbf

Speed

Free Speed

75 rpm

Air consumption at free speed

57 cfm

Noise & vibrations

Sound Power (dba)

100 dba

Sound Pressure

89 dB(A)

Uncertainty vibration-K

0.7 ft/s²

Vibration (m/s²)

< 2.5 m/s**2

FBM-300-3S EC

Pipe beveling/chamfering machine for pipes up to Ø240mm

Weight

Benefits

Effective operation with powerful motor

Zero torque reaction for operator comfort

Adjustable speed to assure precise bevling

Provide standard and custom-made bit tools (cutter)

Portable for easy set-up and operation
