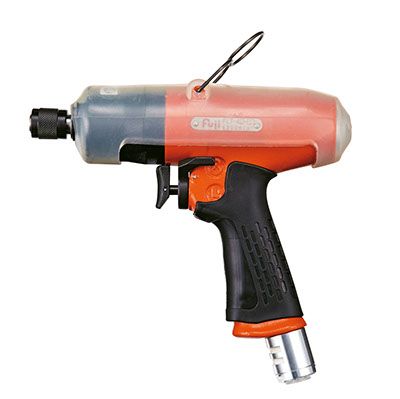

FLT-5 - Shut-off pulse wrench

FLT-5 series are ideal for the various applications requesting torque control in bolt/nut assembly. FLT-5 series shut-off pulse tools consist of 2 model types (pistol and straight) including both square drive and bit shank with wide torque range. 2 type of spindles are available for different market. The series provide PT and NPT inlet.

Country of origin is JP. Customs tariff is 846711000

Technical Specifications

Imperial Metric

Air consumption at load

7.5 l/s

Air inlet thread size (in)

1/4

Air inlet thread type

Min hose diam (5 m hose length)

6.3 mm

Length (L)

181 mm

Side to Center

22 mm

Weight

0.97 kg

Free Speed

6500 rpm

Handle type

Pistol

Output drive size (in)

1/4

Output drive size (mm)

6.35

Output retainer type

Bit Shank (Hex)

Spindle type

Hexagonal

Spline type

Max torque in forward

22 Nm

Min torque in forward

11 Nm

Sound Pressure

79.1 dB(A)

Uncertainty vibration-K

0.7 m/s²

FLT-5D-30

5412105403

Shut-off pulse wrench 11 to 24 Nm

Weight 1 g

Benefits

Advanced pulse unit design improves high durability

Accumulator mechanism minimizes torque scatter

Plunger mechanism improves torque accuracy

Ergonomic griendly design for comfort opeation

Shut-off valve stabilize shut off and ensure torque repeatability
