FG-50 - Straight wheel grinder

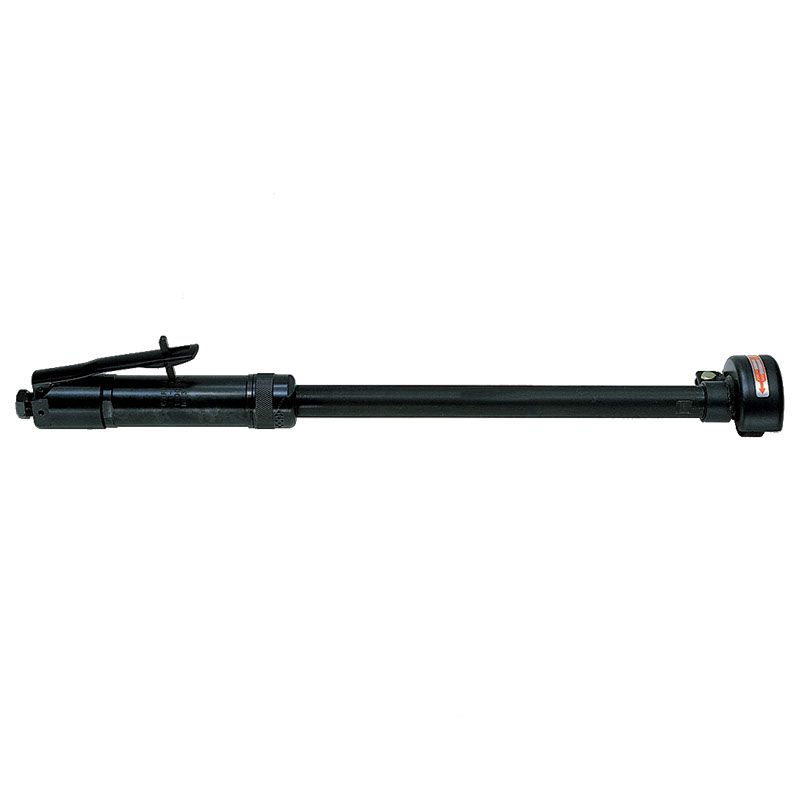

FG-50Y-1BF EC product photo
FG-50 series straight wheel grinder is designed with extension spindle for grindig in limited spaces. Steel body design provide high performance even in harsh enviroments. Roll throttle and locking lever throttle provide to meet different regulations. This series provide PT or NPT inlet.
Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Energy type
Pneumatic
Subfamily
Straight Wheel Grinders
Abrasive type
Type 1
Exhaust
Side
Main Material type
Aluminum
Output Spindle Thread
W3/8-16
Wheel/Disc diameter (mm)
50
Wheel thickness (mm)
13
Air consumption at load
15 cfm
Air inlet thread size (in)
1/4
Air inlet thread type
PT
Min hose diam (5 m hose length)
9.5 mm
Free Speed
18000 rpm
Length (L)
20.94 in
Side to Center
0.79 in
Weight
4.41 lb
Sound Power
97 dB(A)
Sound Pressure
86 dB(A)
Uncertainty vibration-K
5.9 ft/s²
Vibration (m/s²)
3.3
Max power
0.39 hp
FG-50Y-1BF EC product photo

FG-50Y-1BF EC

5412071596

Extended mini straight wheel grinder
weight
Weight 2 kg

Benefits

Rugged design for working even in harsh air environments
Long service life of abrasive due to stability of grinding speed
High performance and smooth operation
Powerful for heavy industry
