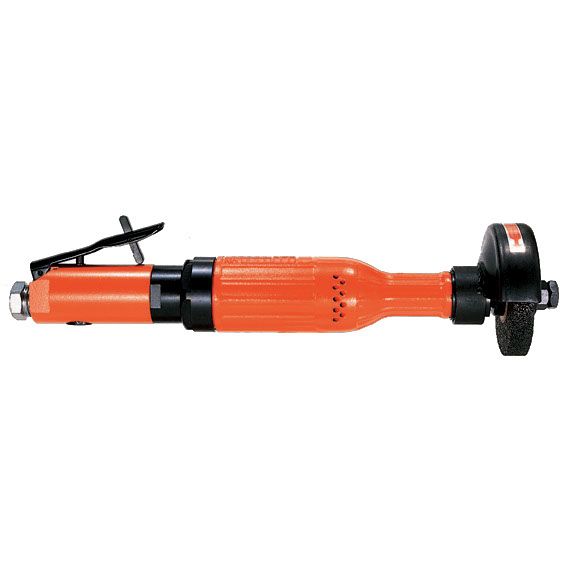

FG-3H - Straight wheel grinder

FG-3H series straight grinders are powerful grinders designed with centrifugal speed governor to control air pressure and maintain the working speed. The series provide tools for 65mm (2-1/2") and 75mm (3") grinding wheels. Roll throttle and locking lever throttle provide to meet different regulations. The series provide PT and NPT inlet. Extension models are also avaialble.

Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Imperial Metric

Energy type

Pneumatic

Subfamily

Straight Wheel Grinders

Air consumption at load

19 cfm

Air inlet thread size (in)

3/8

Air inlet thread type

Min hose diam (5 m hose length)

9.5 mm

Abrasive type

Type 1

Exhaust

Side

Main Material type

Aluminum

Output Spindle Thread

W3/8-16

Wheel/Disc diameter (mm)

Wheel thickness (mm)

Free Speed

12700 rpm

Length (L)

13.46 in

Side to Center

0.94 in

Weight

3.75 lb

Sound Power

92 dB(A)

Sound Pressure

81 dB(A)

Uncertainty vibration-K

2.8 ft/s²

Vibration (m/s²)

2.87

Max power

0.7 hp

FG-3H-2F

Small straight wheel grinder

Dimensions

Weight

Benefits

Rugged design for working even in harsh air environments

Long service life of abrasive due to stability of grinding speed

High performance and smooth operation

Powerful and compact

Durable even in harsh environment
