FRD-6 - Drill

FRD-6 series are ideal drills for drilling capacity: 3mm (1/8"), 5mm (3/15"), 6.5mm (1/4"), 8mm (5/16"), 10mm (7/16") and 13mm (1/2"). The series is including both of pistol type and straight type. Thread type and Jacobs Taper type of spindle are provided to satisfy different drilling requests. Push lever throttle and locking lever throttle are provided for straight drills to meet different regulation. The series provide PT and NPT inlet.

Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Imperial Metric

Free Speed

4300 rpm

Side to Center

0.83 in

Weight

1.98 lb

Chuck max capacity (mm)

6.5

Chuck mount

3/8-24UNF

Handle type

Straight handle

Main Material type

Aluminum

Starting system

Lever

Stall torque

1.8 ft.lbf

Max power

0.39 hp

Air consumption at load

23 cfm

Air inlet thread size (in)

1/4

Air inlet thread type

NPT

Min hose diam (5 m hose length)

10 mm

Sound Pressure

71 dB(A)

Uncertainty vibration-K

2.6 ft/s²

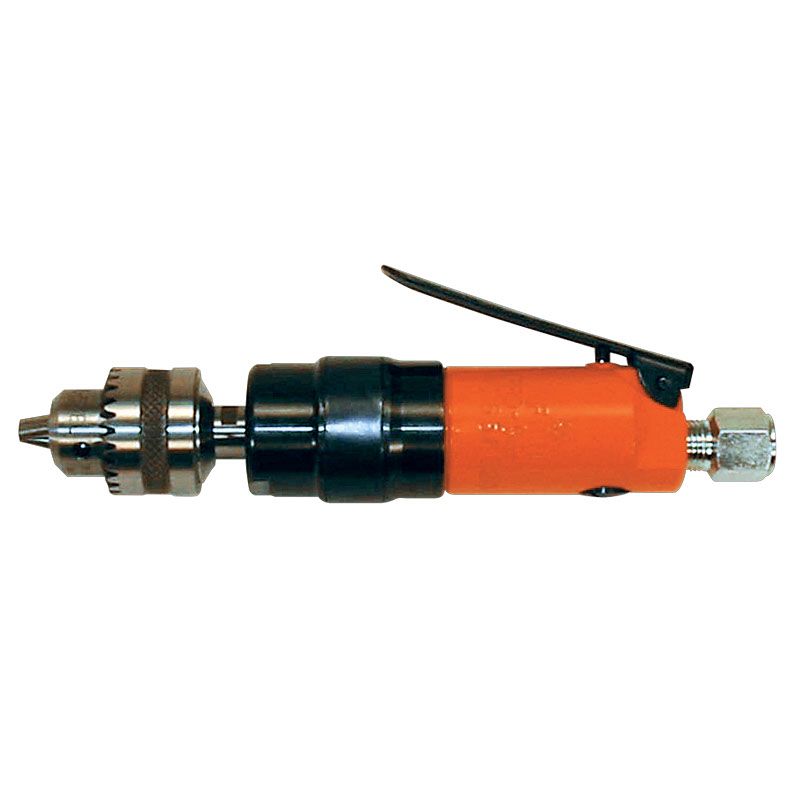

FRD-6S-2 N DRILL

Standard industrial drill (from 3 to 13mm drilling and tapper in option)

Weight

Benefits

Compact and light weight

Easy operate with different throttle type

Long service life is provided

Ergonomic design handle for easy operate

Less run-out for precise drilling
