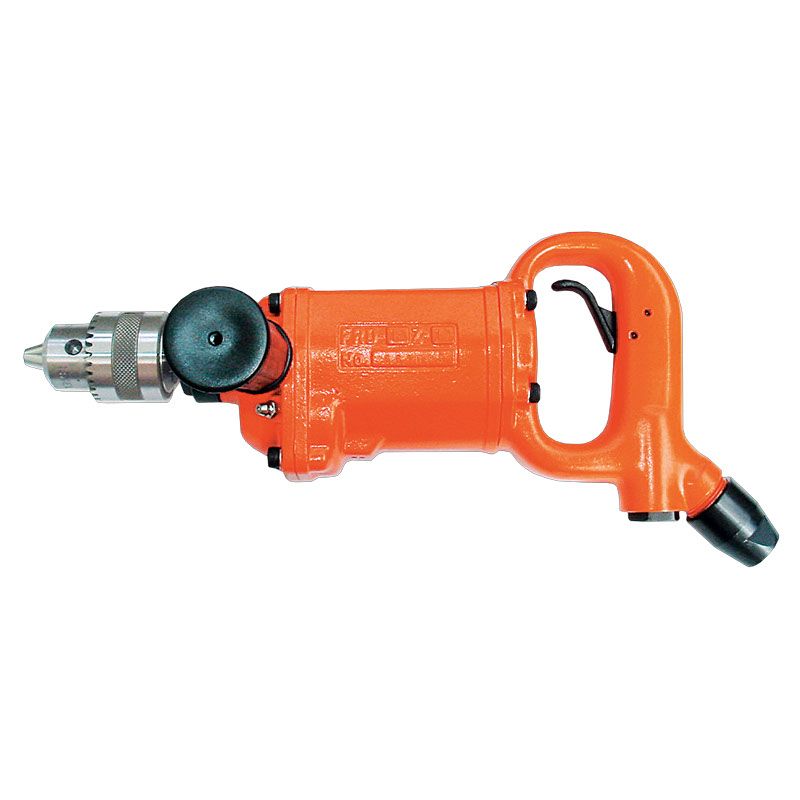

FRD-16 - Drill

FRD-16 series are grip handle medium size drills with support handle for precise drilling operation. The series are designed for 16mm (1/2") drilling capacity with stall torque 34.3Nm (26.3 ft.lb) and motor power 660W (0.88hp). Outside lever and Inside lever D handles are provided for different drilling request with different regulations. The series provide PT and NPT inlet.

Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Imperial Metric

Speed

Free Speed

800 rpm

Size & Weight

Side to Center

1.34 in

Weight

8.16 lb

Design & Functions

Chuck max capacity (mm)

Chuck mount

5/8-16UNF

Handle type

Straight handle

Main Material type

Aluminum

Starting system

Trigger

Torque

Stall torque

25.3 ft.lbf

Power & Battery

Max power

0.89 hp

Air information

Air consumption at load

42 cfm

Air inlet thread size (in)

3/8

Air inlet thread type

NPT

Min hose diam (5 m hose length)

12.7 mm

Noise & vibrations

Sound Pressure

90 dB(A)

Uncertainty vibration-K

1.6 ft/s²

FRD-16Z-1C N

16mm straight drill

Weight

Benefits

Heavy duty D-Handle midum size drill

Fast and precise drilling

Excellent durable gearbox ensures the strong drilling

Cover a large variety of applications like drilling, reaming & tapping of mild steel, cast iron
