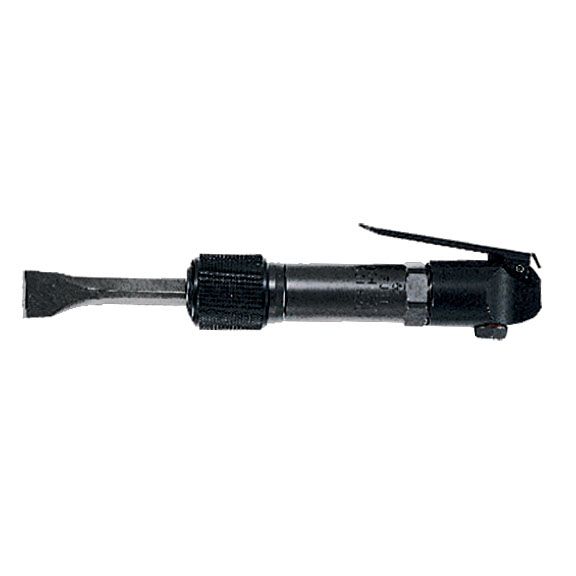

FCH-25 - Flux chipper

FCH-25 series are ideal flux chippers for various removal operation: light chipping, carving, scaling, paint & rust removing and weld flux removing. Push lever throttle handle and locking lever throttle provide to meet different regulations. This series provide PT and NPT inlet.

Country of origin is JP. Customs tariff is 846719000

Technical Specifications

Imperial Metric

Design & Functions

Blow per minute

3600

Chisel shank

Round

Speed

Air consumption at free speed

3 l/s

Air information

Air inlet thread size (in)

1/4

Air inlet thread type

Min hose diam (5 m hose length)

9.5 mm

Size & Weight

Bore diameter

25 mm

Length (L)

204 mm

Stroke

20 mm

Weight

1.5 kg

Noise & vibrations

Sound Power

107 dB(A)

Sound Pressure

96 dB(A)

Uncertainty vibration-K

3.7 m/s²

Vibration (m/s²)

< 2.5

FCH-25

5412071290

Flux chipper for carving stone, scaling, removing paint, rust, weld flux

Weight 1.5 kg

Benefits

High revolution and high working efficiency can be obtained from piston valve mechanism

Very low air consumption

Two kinds of shank tools (FCH-20 range and FCH-20F range) provide for different chisels

Durable even in harsh environment
