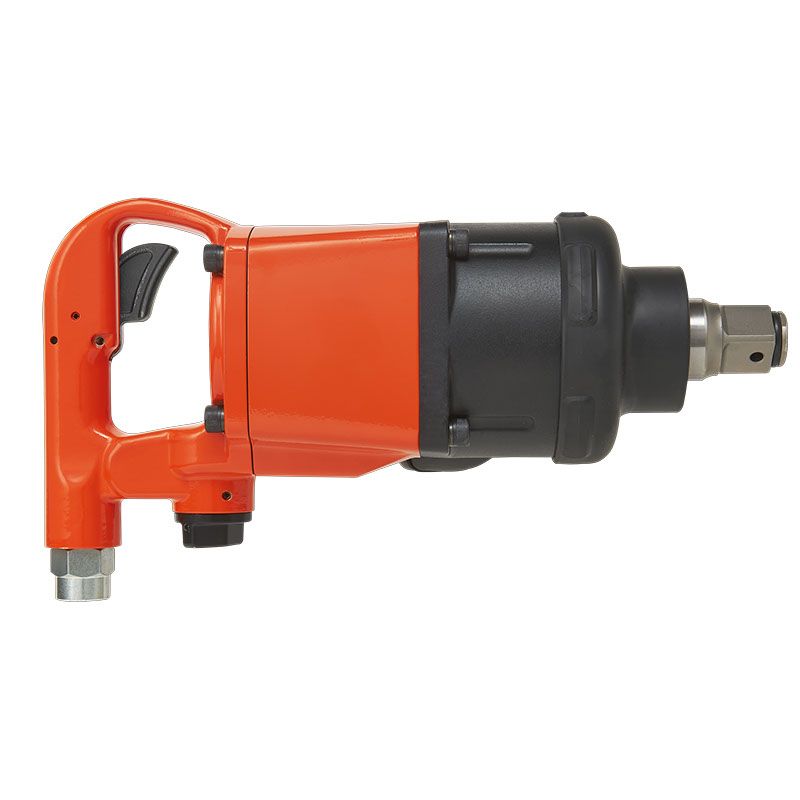

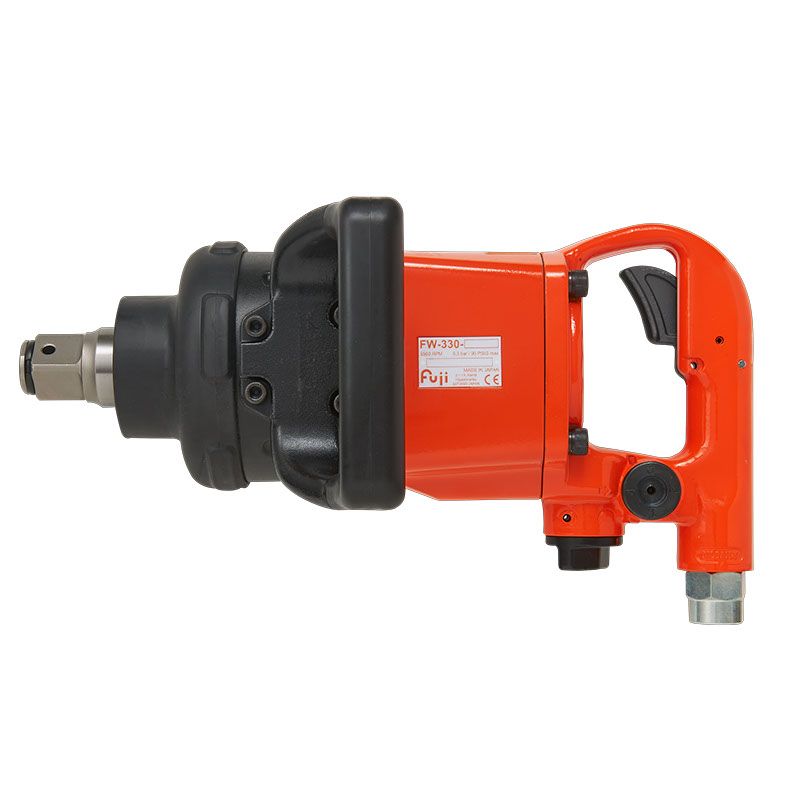

FW-330 - Impact wrench
Technical Specifications
Size & Weight
Length (L)
356 mm
Weight
10.7 kg
Air information
Air consumption at load
19 l/s
Air inlet thread size (in)
1/2
Air inlet thread type
NPT
Min hose diam (5 m hose length)
12.7 mm
Design & Functions
Handle type
Straight handle
Impact mecanism
Pinless rocking dog
Output drive size (in)
1
Output drive type
Sq
Speed
Free Speed
5000 rpm
Torque
Max working torque fwd
2100 Nm
Max torque reverse
2600 Nm
Min working torque fwd
500 Nm
Noise & vibrations
Sound Power (dba)
111
Sound Pressure
100 dB(A)
Uncertainty vibration-K
2.7 m/s²
Vibration (m/s²)
< 2.5
FW-330-1C N EC
5412104155
Package Weight 12 kg
THIS PRODUCT IS UNAVAILABLE
This product is out of production or unavailable for purchase.Contact us if you need support on this.
