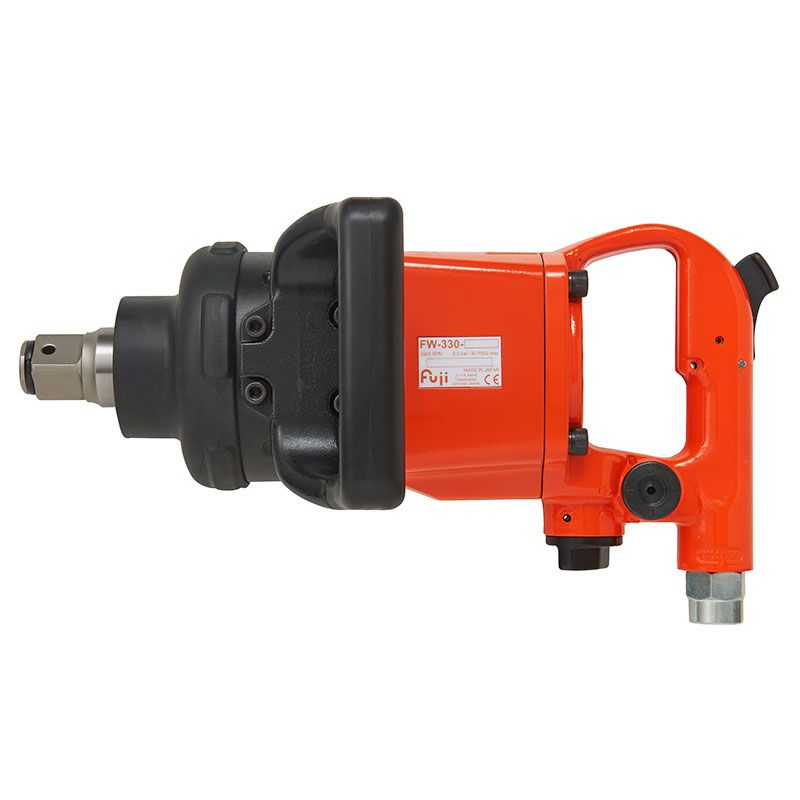

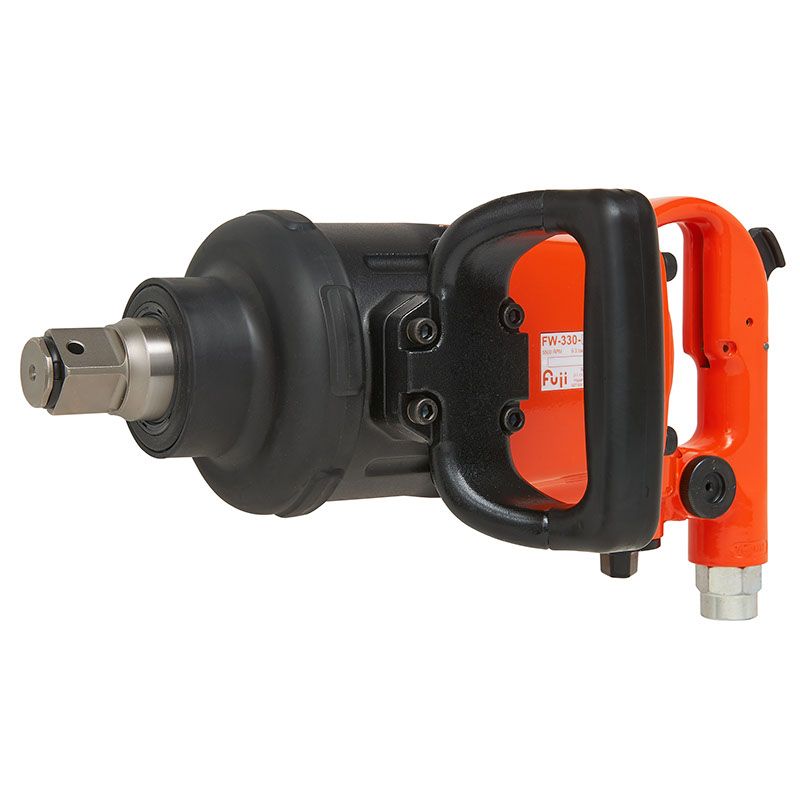

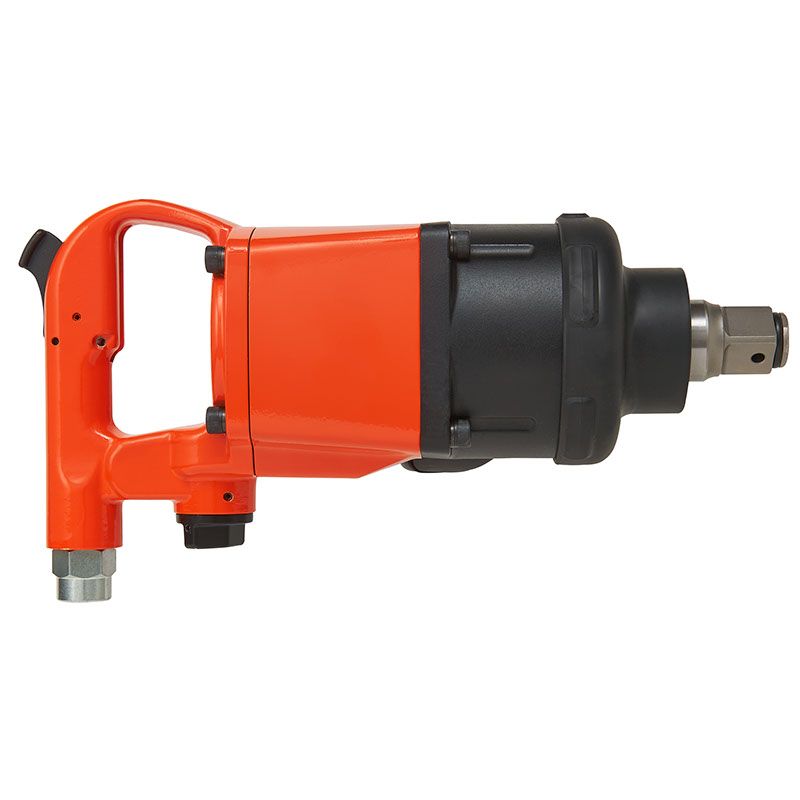

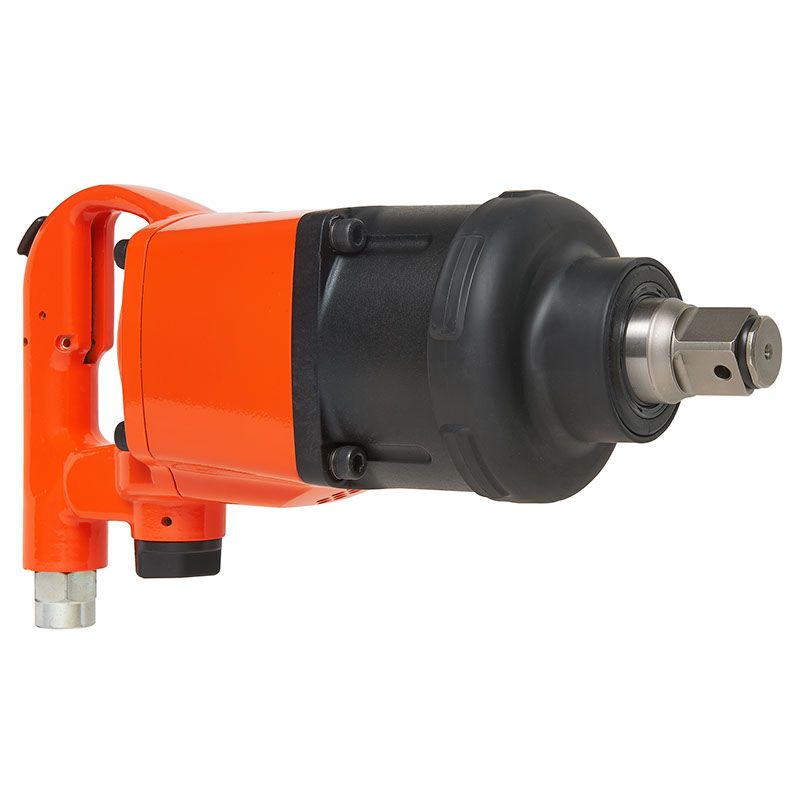

FW-330 - Impact wrench

Thanks to their powerful and durable motor and pin-less rocking dog hammer, the Fuji FW-330 1″ impact wrenches are the ideal bolting solutions for heavy duty production and maintenance applications The series powered by a powerful reverse bias motor to deliver best in class torque of 2600 Nm (1930 ft.lbs). They also feature an oil bath pin-less rocking dog clutch and a 4 speed regulator for better control , outside or inside trigger options as well as a dual socket retainer for maximum tool versatility.

Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Imperial Metric

Size & Weight

Length (L)

14.41 in

Weight

23.5 lb

Air information

Air consumption at load

40 cfm

Air inlet thread size (in)

1/2

Air inlet thread type

Min hose diam (5 m hose length)

12.7 mm

Design & Functions

Handle type

Straight handle

Impact mecanism

Pinless rocking dog

Output drive size (in)

Output drive type

Speed

Free Speed

5000 rpm

Noise & vibrations

Sound Power (dba)

111

Sound Pressure

100 dB(A)

Uncertainty vibration-K

8.9 ft/s²

Vibration (m/s²)

< 2.5

Torque

Max working torque fwd

1550 ft.lbf

Max torque reverse

1920 ft.lbf

Min working torque fwd

369 ft.lbf

FW-330-1

Pistol 1" impact wrench

Weight

Benefits

High durability from its hammer clutch mechanism and metal housing

4 Speed regulator ensures better control

Available with a pistol handle design or a straight type in short or 6" long anvil

Ergonomic design of a comfortable rotating side handle

Torque up to 2600 Nm to disassemble any screws
