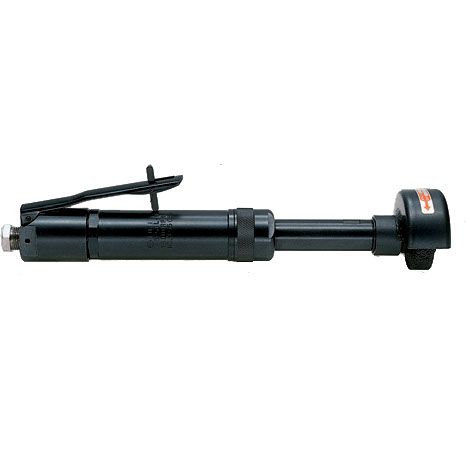

FG-50 - Straight wheel grinder

FG-50 series straight wheel grinder is designed with extension spindle for grindig in limited spaces. Steel body design provide high performance even in harsh enviroments. Roll throttle and locking lever throttle provide to meet different regulations. This series provide PT or NPT inlet.

Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Imperial Metric

General

Energy type

Pneumatic

Subfamily

Straight Wheel Grinders

Air information

Air consumption at load

15 cfm

Air inlet thread size (in)

1/4

Air inlet thread type

Min hose diam (5 m hose length)

9.5 mm

Design & Functions

Abrasive type

Type 1

Exhaust

Side

Main Material type

Aluminum

Output Spindle Thread

W3/8-16

Wheel/Disc diameter (mm)

Wheel thickness (mm)

Speed

Free Speed

18000 rpm

Size & Weight

Length (L)

12.44 in

Side to Center

0.79 in

Weight

3.09 lb

Noise & vibrations

Sound Power

95 dB(A)

Sound Pressure

84 dB(A)

Uncertainty vibration-K

5.9 ft/s²

Vibration (m/s²)

3.3

Power & Battery

Max power

0.39 hp

FG-50L-1BF EC

Extended mini straight wheel grinder

Weight

Benefits

Rugged design for working even in harsh air environments

Long service life of abrasive due to stability of grinding speed

High performance and smooth operation

Powerful for heavy industry
