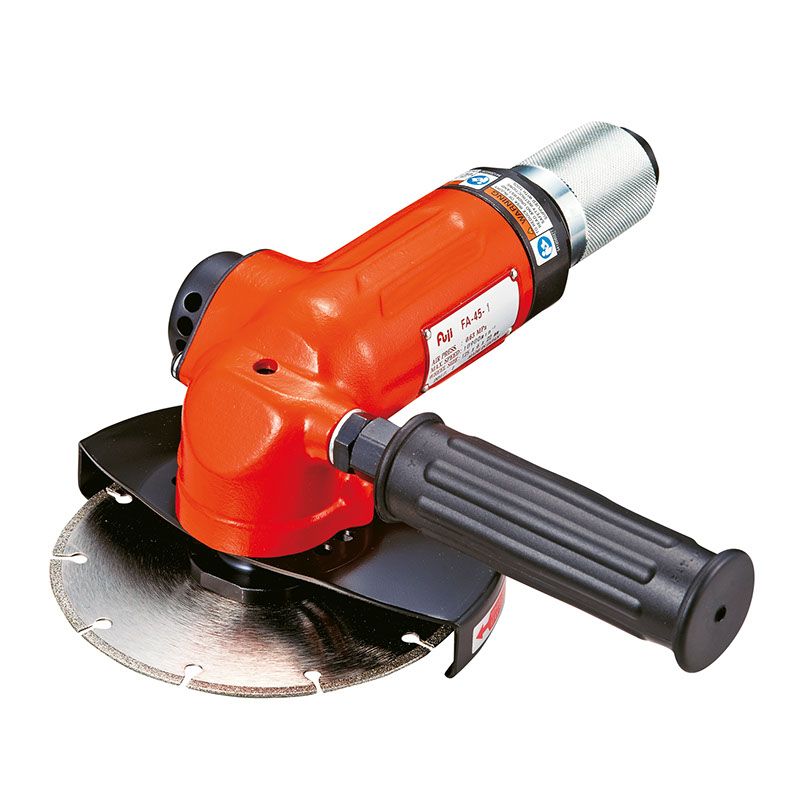

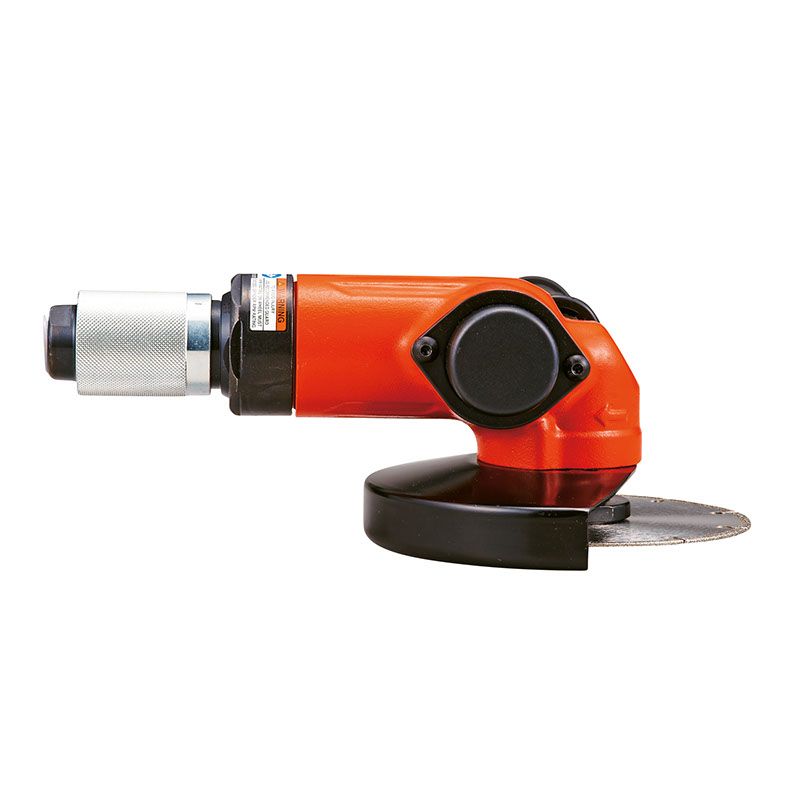

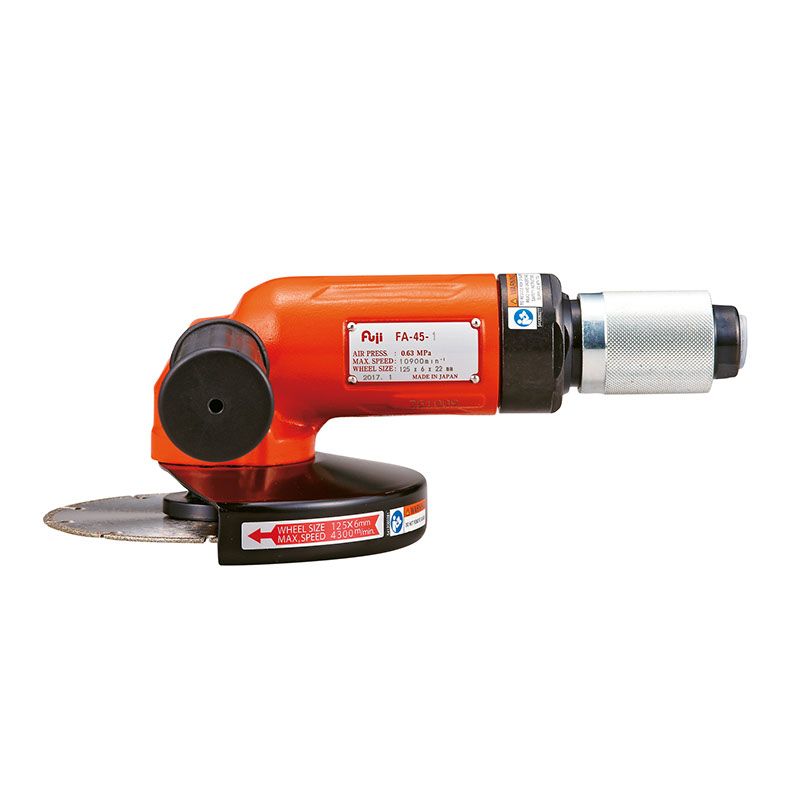

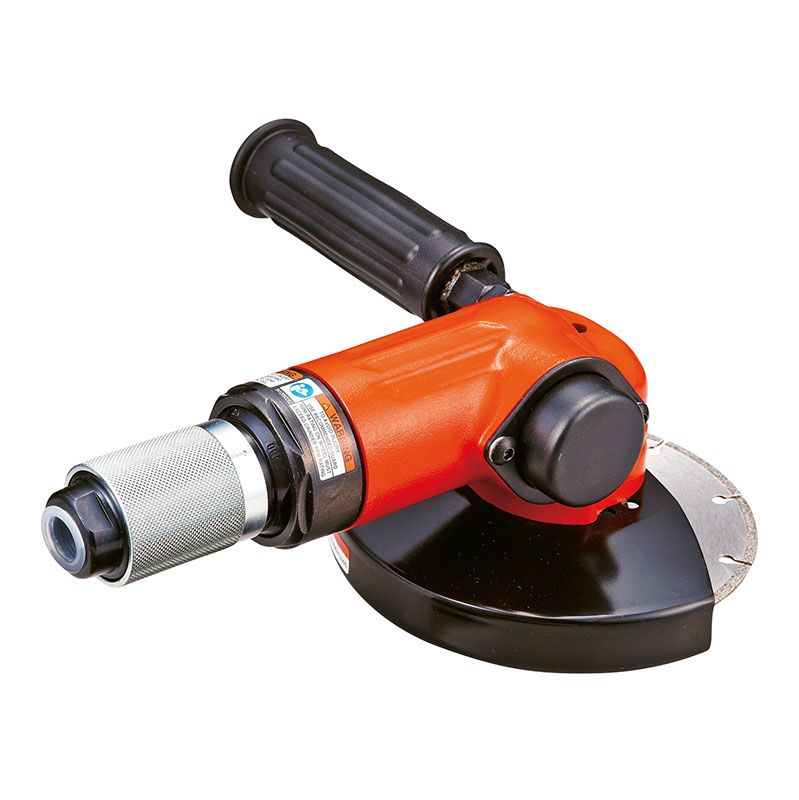

FA-45 - Angle grinder

FA-45 series are compact, low profile (60.4mm) angle head and high power 5" (125mm) angle grinders. Has the high power-to-weight ratio (max 1100W, 1.48hp) in its class. Designed for heavy duty use in a harsh environment. Spindle thread M14x2.0(M), 5/8"-11UNC(M) and M8-P1.25(F) are available for 7", 180mm grinding wheels. Roll throttle handle and safety locking lever throttle handle provide to meet different regulations. This series provide Rc and NPT inlet.

Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Technical Specifications

Imperial Metric

Air information

Air inlet thread size (in)

3/8

Air inlet thread type

Min hose diam (5 m hose length)

12 mm

Design & Functions

Abrasive type

Type 41

Guard positions

Main Material type

Aluminum

Starting system

Rolling throttle

Wheel/Disc diameter (mm)

125

Speed

Free Speed

10900 rpm

Air consumption at free speed

38 cfm

Noise & vibrations

Sound Power (dba)

95.3

Sound Pressure

84.3 dB(A)

Uncertainty vibration-K

7.9 ft/s²

Vibration (m/s²)

5.1

Size & Weight

Length (L)

8.19 in

Weight

4.41 lb

Power & Battery

Max power

1.48 hp

FA-45-8

Powerfull 125mm angle grinder - max 1000W

Weight

Benefits

High power & lightweight

Cooling gears by air flow extend service life

Compact with low head design

Great power to weight ratio

360° air exhaust adjustment
