FA-45 - Angle grinder

FA-45 series are compact, low profile (60.4mm) angle head and high power 5" (125mm) angle grinders. Has the high power-to-weight ratio (max 1100W, 1.48hp) in its class. Designed for heavy duty use in a harsh environment. Spindle thread M14x2.0(M), 5/8"-11UNC(M) and M8-P1.25(F) are available for 7", 180mm grinding wheels. Roll throttle handle and safety locking lever throttle handle provide to meet different regulations. This series provide Rc and NPT inlet.

Country of origin is JP. Customs tariff is 846711000

Technical Specifications

Imperial Metric

Air information

Air consumption at load

21 l/s

Air inlet thread size (in)

3/8

Air inlet thread type

NPT

Min hose diam (5 m hose length)

10 mm

Design & Functions

Abrasive type

Type 27

Guard positions

Main Material type

Aluminum

Output Spindle Thread

M14

Starting system

Safety lever

Wheel/Disc diameter (in)

Wheel/Disc diameter (mm)

125

Speed

Free Speed

10900 rpm

Noise & vibrations

Sound Power (dba)

96.8

Sound Power

96.8 dB(A)

Sound Pressure

85.8 dB(A)

Uncertainty vibration-K

2.4 m/s²

Vibration (m/s²)

5.2

Size & Weight

Abrasive inner diam size

22.2 mm

Length (L)

259 mm

Weight

2.1 kg

Power & Battery

Max power

950 W

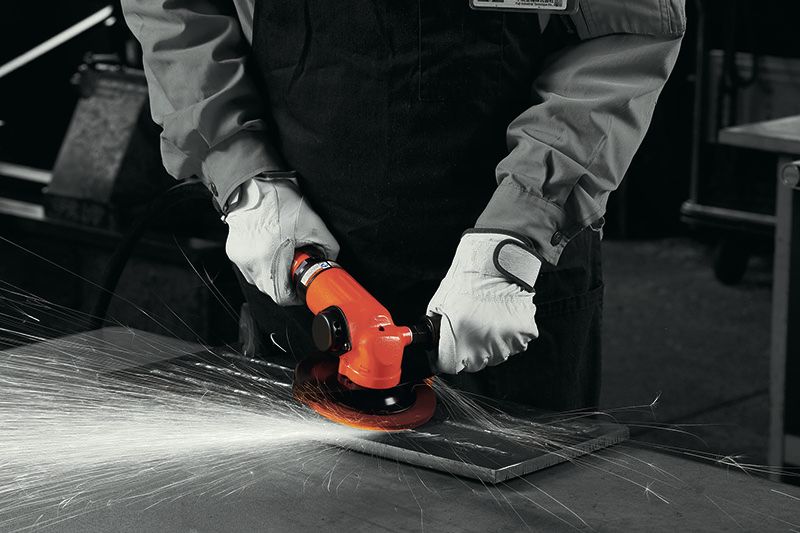

FA-45-2F N EC

5412104918

Powerfull 125mm angle grinder - max 1000W

Weight 1.9 kg

Benefits

High power & lightweight

Cooling gears by air flow extend service life

Compact with low head design

Great power to weight ratio

360° air exhaust adjustment
